PROXIMA PSP161 Electromagnetic Dosing Pump

Pricing: POA, contact us for a quote.

Professional installation recommended: this is chemical dosing/injection equipment for pool water treatment (chlorine, pH adjusters, etc.) and should be installed and commissioned by a qualified pool technician.

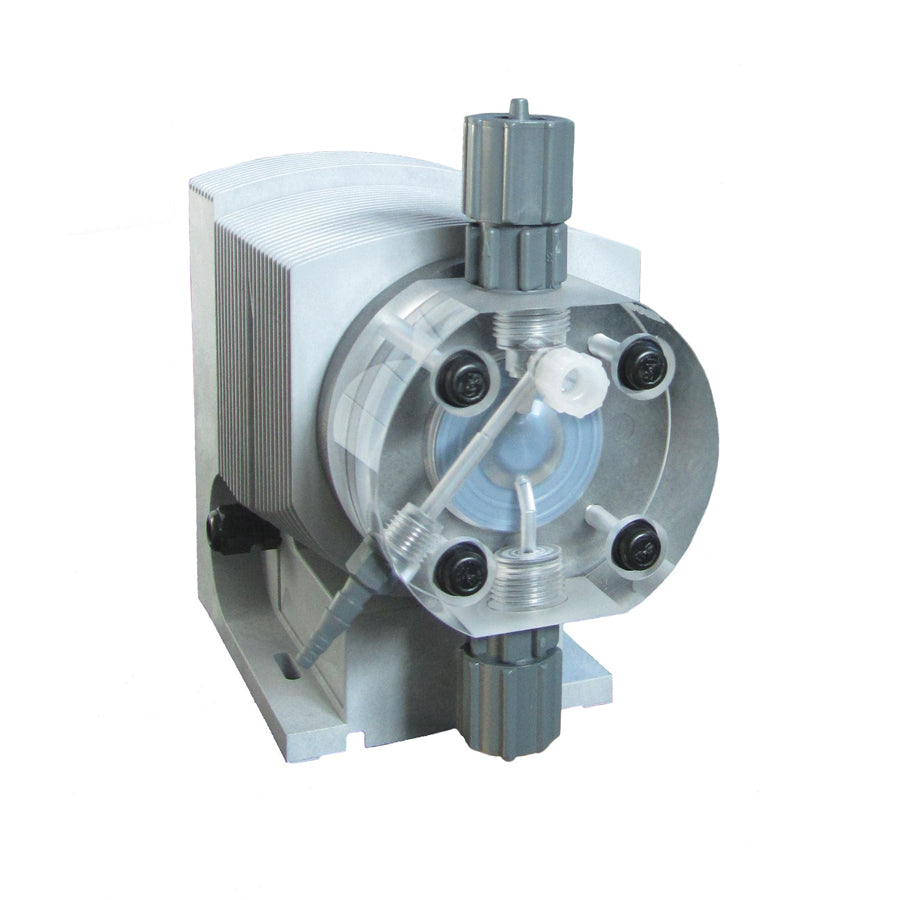

PROXIMA PSP161 is a professional electromagnetic dosing pump with multifunctional electronics and high-level hydraulics, part of Steiel's PROXIMA PSP series. It features mechanical adjustment of stroke length (dosing volume), an internal overheating control/safety system, and a dosing chamber with anti-leakage system towards the magnet.

PSP161 is the multifunction model, with pulse and mA inputs. Operating modes include steady dosing, pulse command with dosage proportional to flow rate or automatic calculation (ppm, %, ml/q), command from a 0/4-20 mA analogue input, batch mode, and pause-work cycling.

Designed for horizontal installation, it can also be wall mounted using Steiel's rotating support bracket. Supplied with an installation kit including hoses, injection valve and foot filter.

Key features

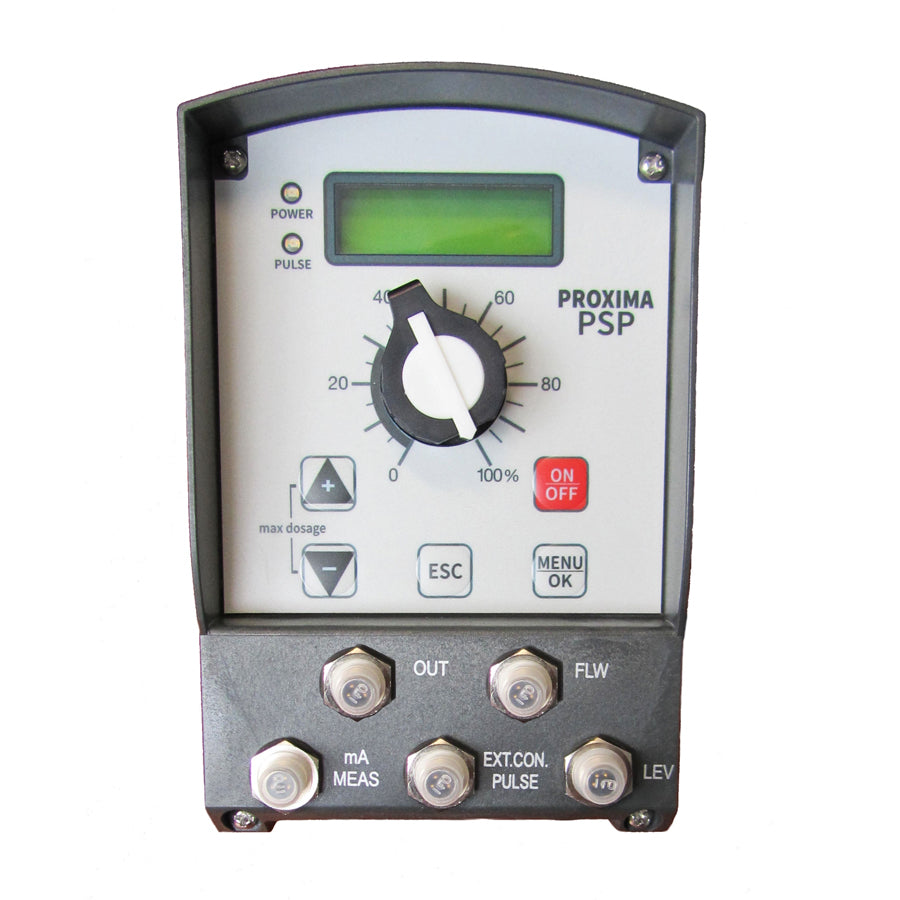

• High-end multifunction electronics with backlit alphanumeric display
• Mechanical stroke length (injection volume) adjustment
• Multilingual interface (Italian, English, Spanish, French, German)
• Two configuration levels (standard and advanced), password protected
• Internal clock for dosing at scheduled days and times
• Built-in counters for dosed litres, working hours and diaphragm strokes
• "Service" menu and "Autoset" quick-configuration function
• Standard digital inputs for external consent and level control

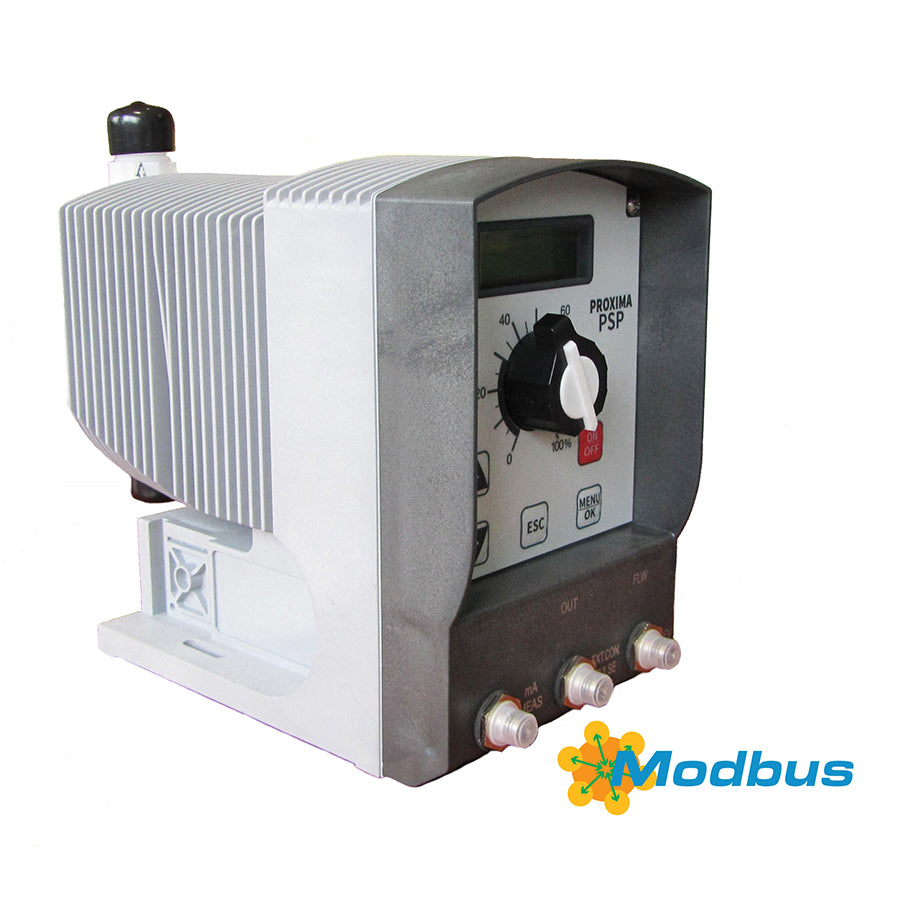

• Optional: injection flow monitoring (Flow Control sensor) with self-priming, alarm/pulse repetition relay, or RS485 serial port with Modbus RTU protocol

Specifications

• Flow rate: available from 2-32 L/h across the PSP range; the two configurations we stock are 32 L/h @ 2 bar and 20 L/h @ 2 bar, suited to most NZ pools which don't run above 2 bar backpressure
• Operating backpressure: up to 25 bar (model dependent)

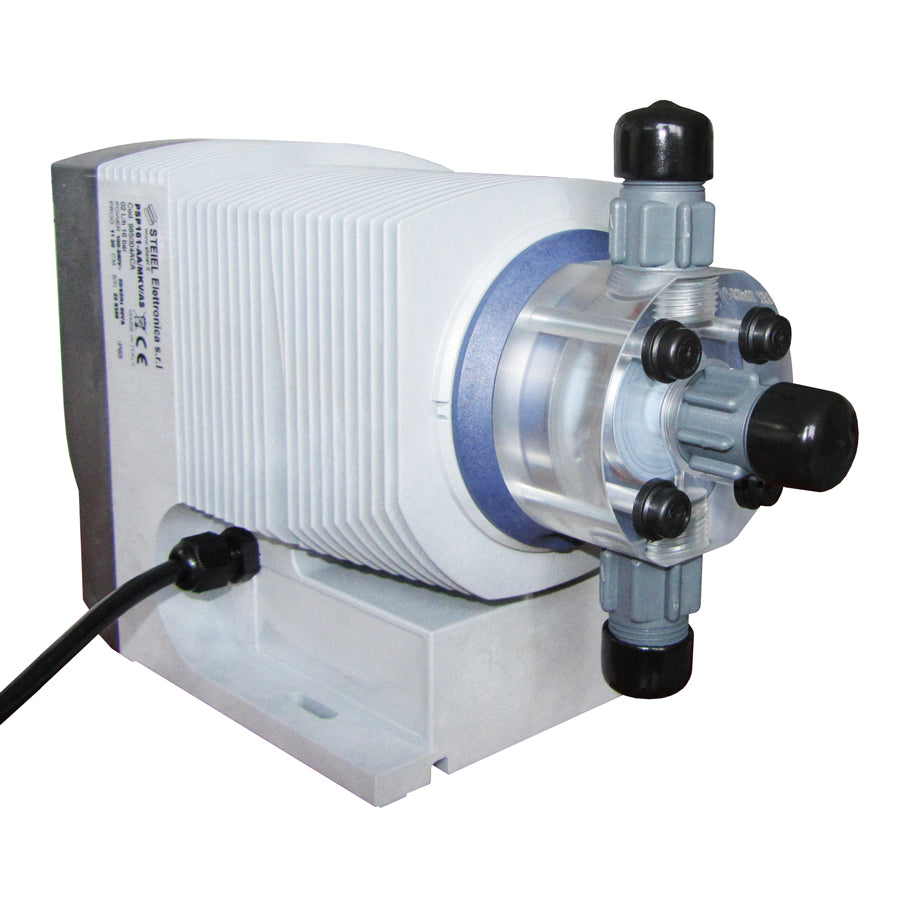

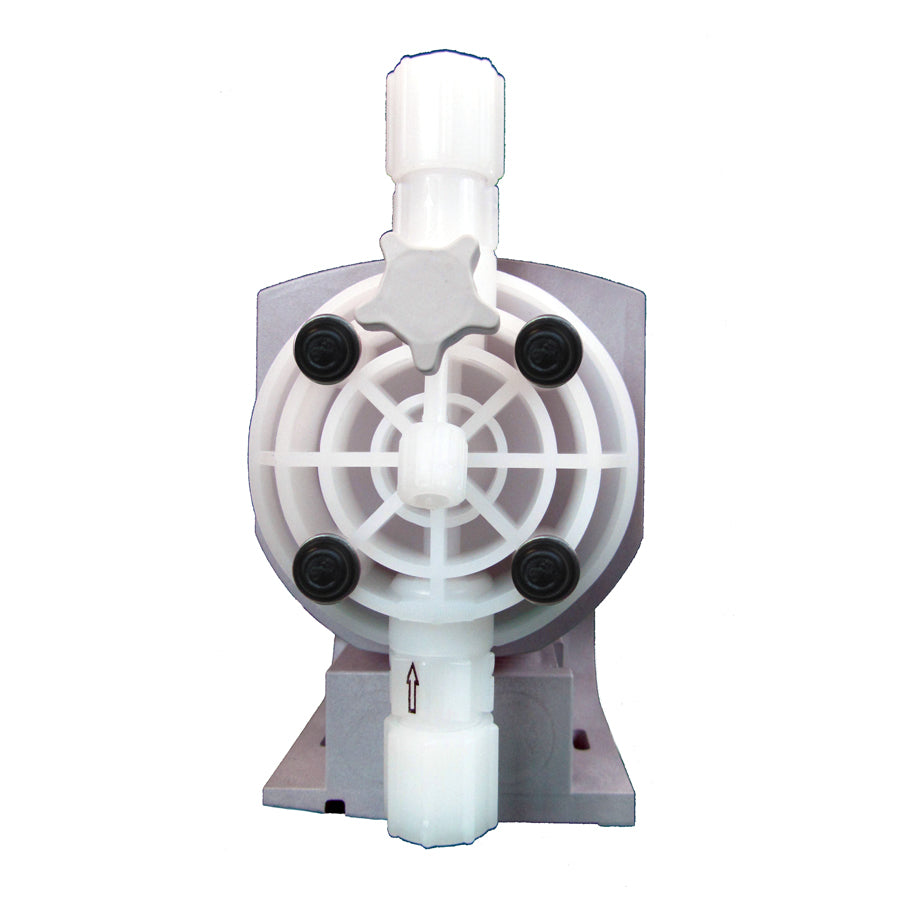

• Dosing head: PVDF (standard), with PTFE-coated multi-layer membrane; valves with PVDF body and ceramic ball; PTFE/FPM/EPDM seals
• Housing: IP65-rated
• Dimensions: 110 x 260 x 190 mm (max, excluding wiring)
• Power supply: 100-240V~ 50/60Hz, manufactured with NZ plug
• Mounting: horizontal (foot) or wall-mounted with optional rotating support bracket
