CAC Series Amperometric Probe (with Membrane)

Pricing: POA, contact us for a quote.

Configuration confirmed at order: measurement parameter (see below) is selected when stock is ordered.

Requires a probe holder: CAC probes must be installed in a proper probe holder with inlet water flow regulation and proximity sensor. This is a separate accessory, not included with the probe.

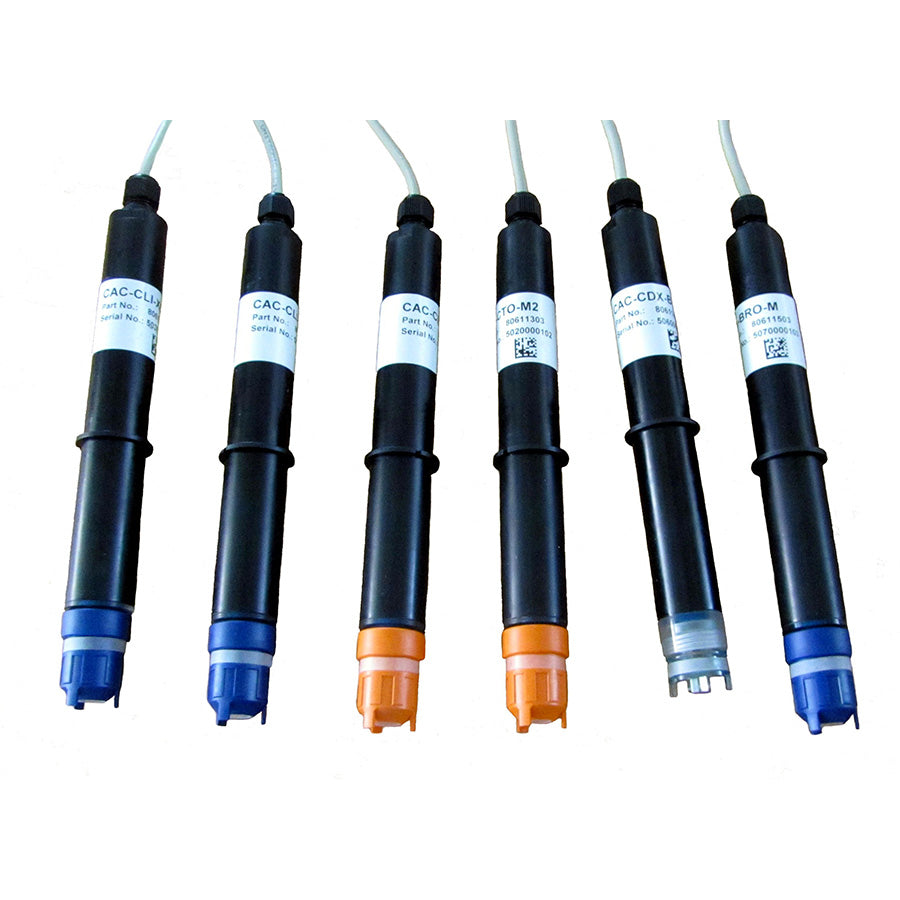

The CAC Series is a complete range of amperometric sensors, with two electrodes protected by a special selective membrane. Each probe has an ion-selective membrane and specific electrolyte for stable, protected measurement conditions, with thermo-compensated readings via a built-in temperature sensor for continuous, reliable monitoring.

Available measurement parameters (confirmed at order)

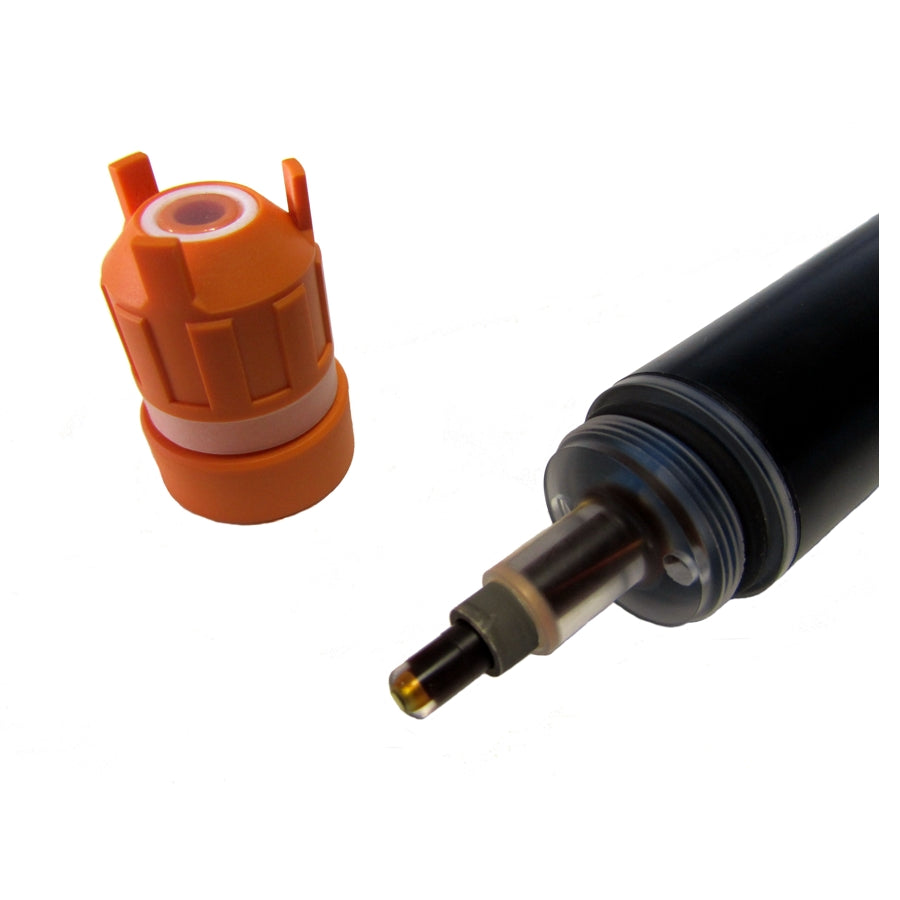

• Chlorine (free/active, organic/available, or total)
• Chlorine dioxide
• Chlorite

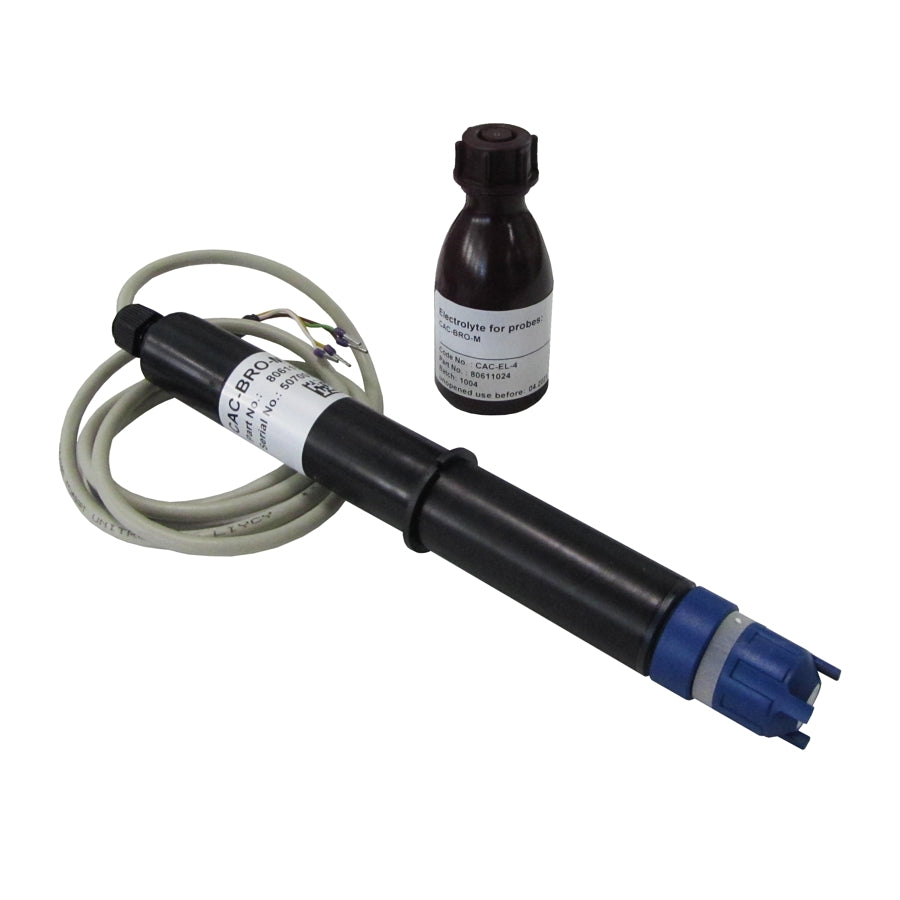

• Bromine
• Hydrogen peroxide
• Ozone
• Peracetic acid

A membrane-free model (CAC-HT-B) is also available for measurements in hot or dirty water — ask if this applies to your application.

Specifications

• Working temperature: 5–45°C
• Max pressure: 1 bar
• Recommended flow rate: 40–60 L/h
• Sample conductivity: 50–10,000 µS/cm
• Cable: shielded, 4-wire
