PNL EW² Pool Turnkey Panel System (2 x NOVA Dosing Pumps)

Pricing: POA, contact us for a quote.

Configuration confirmed at order: chlorine measurement method (pH/ORP, pH/CAC or pH/CLE, see below) is selected when stock is ordered.

Professional installation and commissioning recommended: this is a water treatment control system and should be installed, calibrated and commissioned by a qualified pool technician.

PNL EW² Pool is a "turnkey" panel system built around STEIEL's EVOLUTION EW² Pool control unit, fully assembled and pre-wired with two NOVA electromagnetic dosing pumps (one for pH/acid, one for chlorine/disinfectant) on a single mounting panel. It's designed for fast, straightforward installation rather than sourcing and wiring the control unit, pumps and sensors separately.

In addition to the pH and chlorine dosing pumps, the EW² Pool control unit can also drive two further pumps for the timed dosing of anti-algae and flocculant products (not included in the base panel).

What's included

• EVOLUTION EW² Pool control unit
• 2 x NOVA electromagnetic dosing pumps (pH and chlorine)
• Measurement sensors, with probe holders
• Filter holder with washable mesh cartridge
• Calibration solutions

Available models (chlorine measurement method)

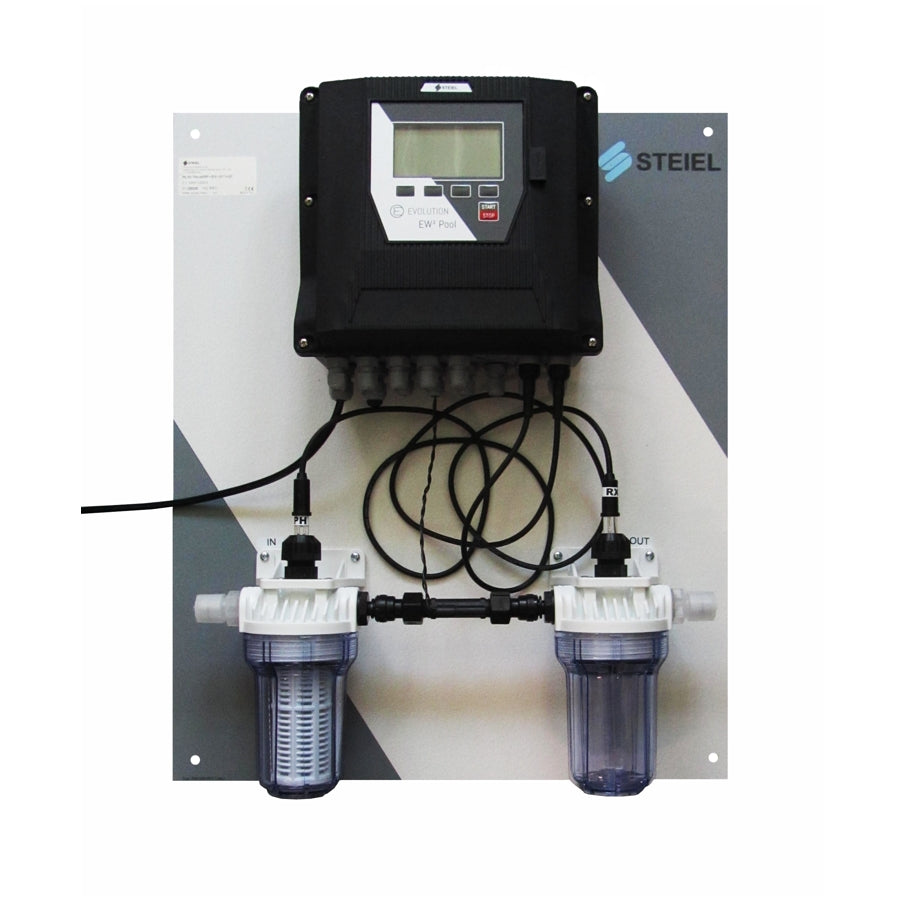

• pH/ORP – indirect chlorine determination via ORP (mV) readings

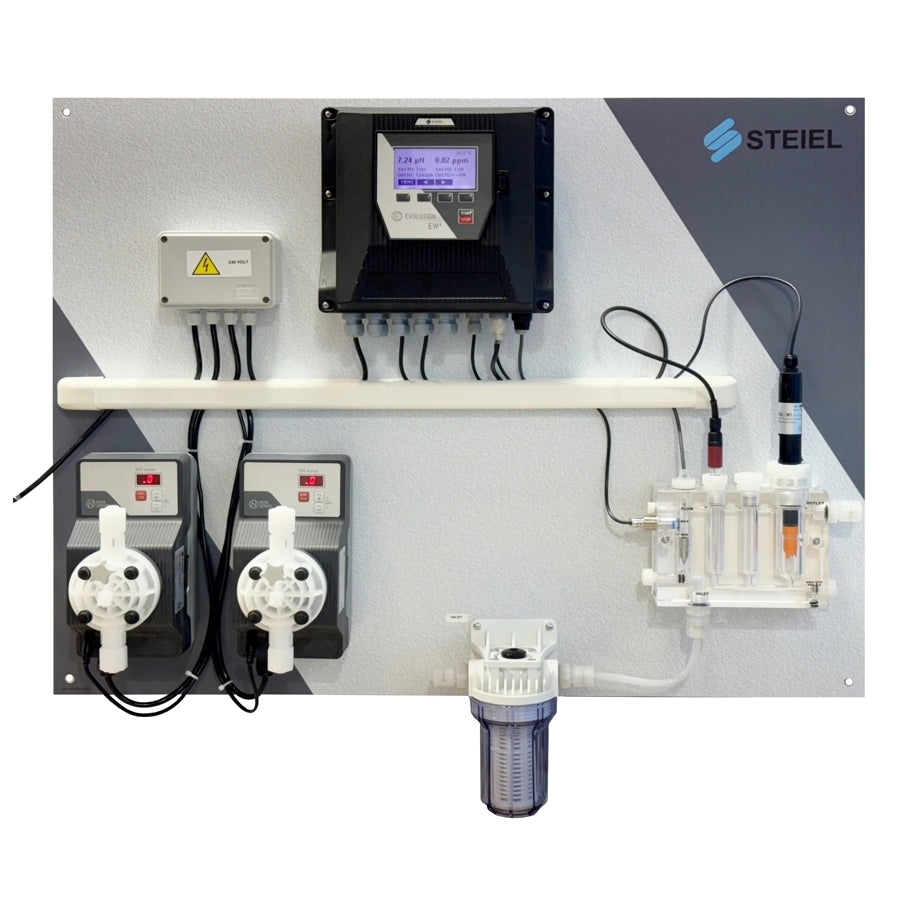

• pH/CAC – direct chlorine measurement in ppm, with membrane amperometric probe

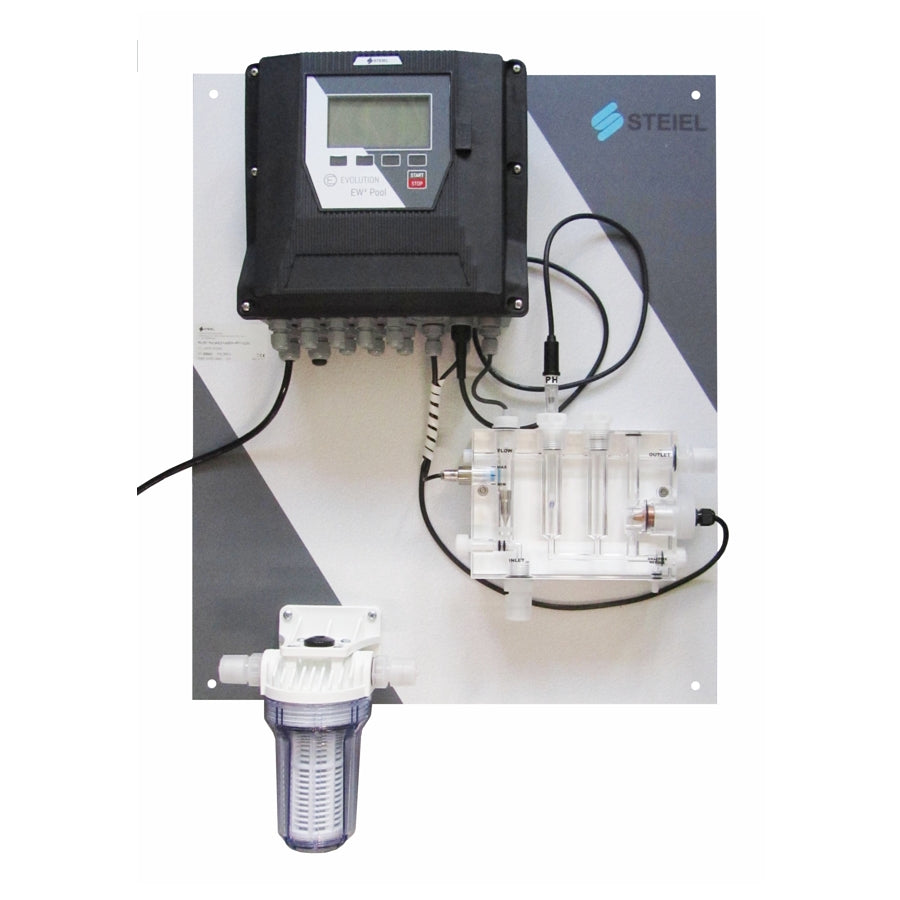

• pH/CLE – direct chlorine measurement in ppm, with Cu/Pt amperometric cell

Specifications

• Panel dimensions (with pumps): 900 x 700 mm
• Panel mounting: 4 wall-fixing holes
• Customisable graphic layout available on request
• Optional: SteieLynx supervisor for remote management via RS485 serial line or integrated module
• Power supply as per EW² Pool control unit, manufactured with NZ plug
