NOVA² Pool Compact pH/Chlorine Analysis & Dosing System

Pricing: POA, contact us for a quote.

Configuration confirmed at order: NOVA² Pool is available in three models depending on the chlorine measurement method required: pH/ORP, pH/CAC or pH/CLE (see below). Model is selected when stock is ordered.

Professional installation and commissioning recommended: this is a water treatment control instrument and should be installed, calibrated and commissioned by a qualified pool technician.

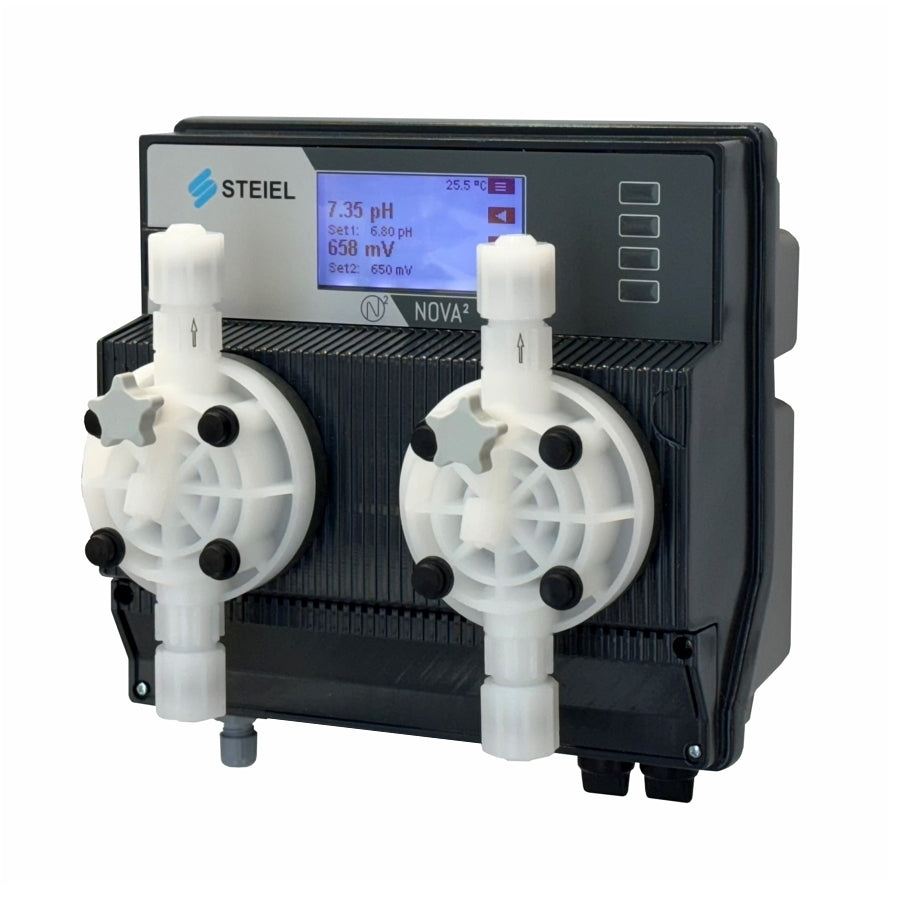

NOVA² Pool is a compact, all-in-one instrument for the analysis and adjustment of pH and chlorine levels, with software dedicated to swimming pool applications. Unlike the EW² Pool controller, which drives external dosing pumps, NOVA² Pool has two electromagnetic dosing heads built directly into the unit (flow rate up to 20 L/h), making it a self-contained measurement-and-dosing system. It also features STEIEL's patented easy+fix system, for compact assembly of the sensor-holder directly onto the instrument case.

Key features

• Two measurement inputs for pH electrode / ORP electrode / amperometric sensor; pH and ORP on BNC connectors, chlorine probe on a dedicated plug
• Pt100/Pt1000 input with automatic sensor recognition, for temperature measurement and compensation
• User-friendly interface with multi-function softkeys and three-level, password-protected configuration
• Graphic display with status-indicating backlight colour
• Two built-in electromagnetic dosing heads, flow rate up to 20 L/h
• Two level inputs, plus input for sample water flow control and a pause digital input to disable all outputs
• "EcoMode" function to reduce dosing and save chemicals, controllable by external contact or timer
• Internal RTC for time-schedule setting and date/time data labelling
• Watertight, easily accessible USB port for configuration, data download and system upgrades
• Connectivity: RS485 serial port with Modbus RTU protocol, or integrated SteieLynx gateway (WiFi/LAN or GSM)

Available models

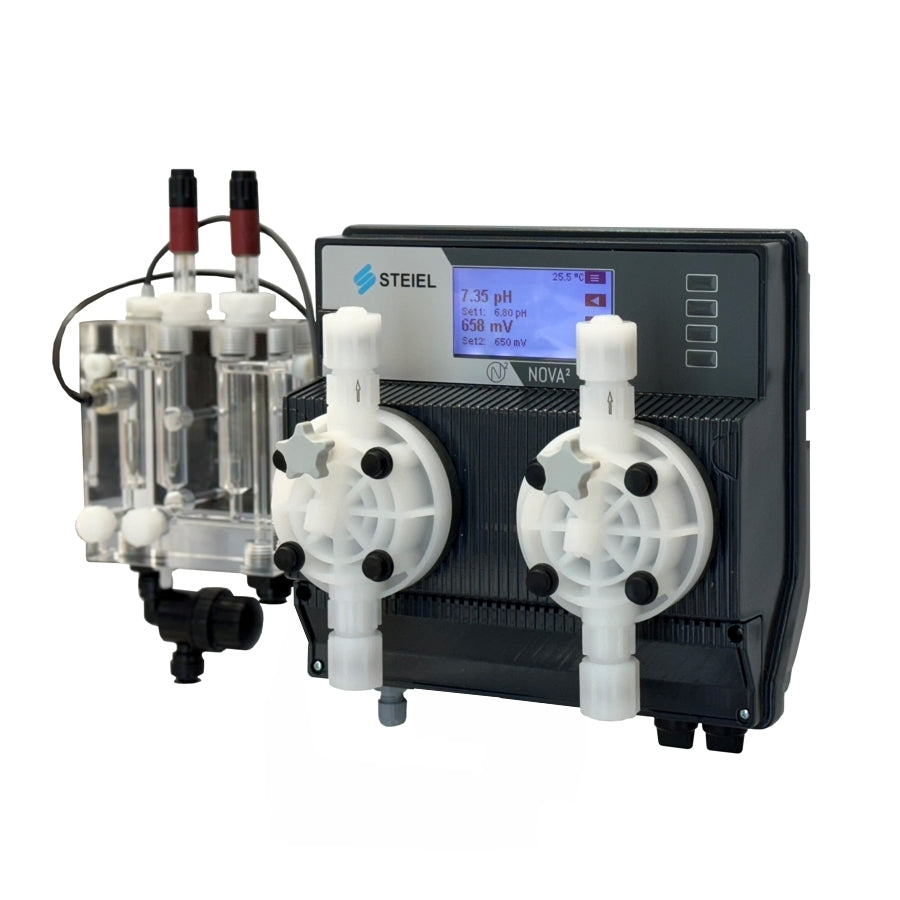

• pH/ORP – indirect chlorine determination via ORP (mV) readings
• pH/CAC – direct chlorine measurement in ppm, with membrane amperometric probe

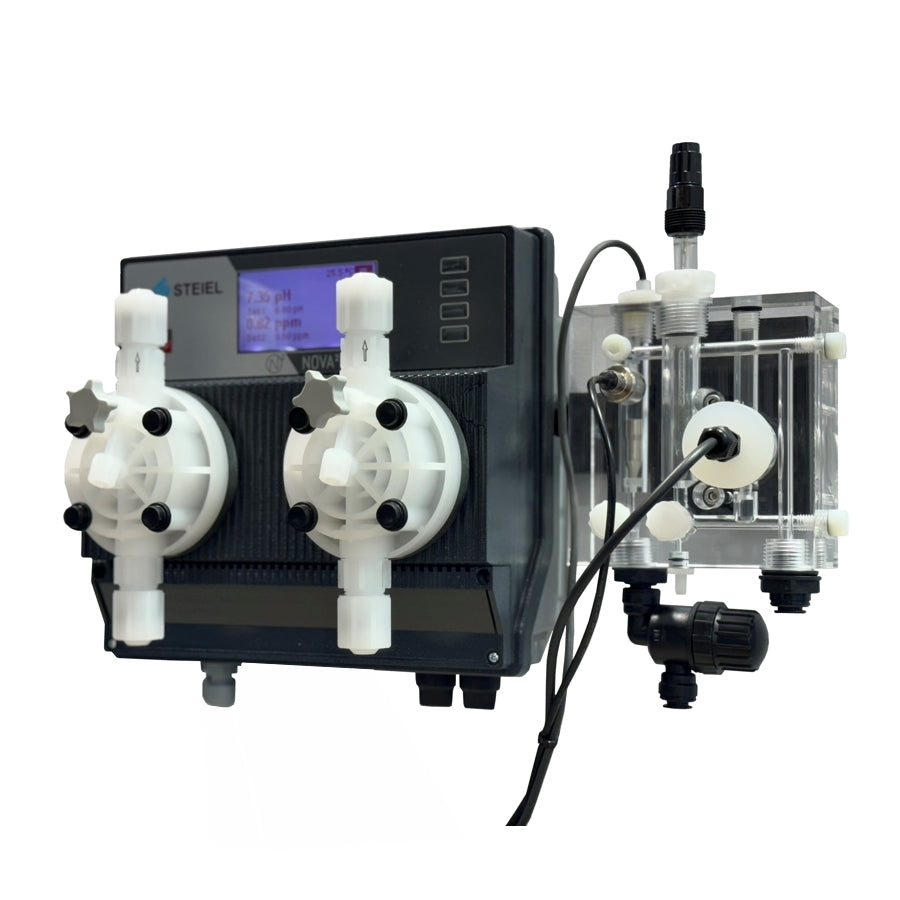

• pH/CLE – direct chlorine measurement in ppm, with Cu/Pt amperometric cell

Specifications

• Power supply: 230V~ (standard), 115V~ on request, manufactured with NZ plug
• Housing: watertight IP65, suitable for damp technical rooms
• Mounting: wall bracket
