Flow-through Probe Holder, SD Series (Methacrylate Body)

Pricing: POA, contact us for a quote.

Configuration confirmed at order: model and installation kit (cold or hot water, see below) are selected when stock is ordered.

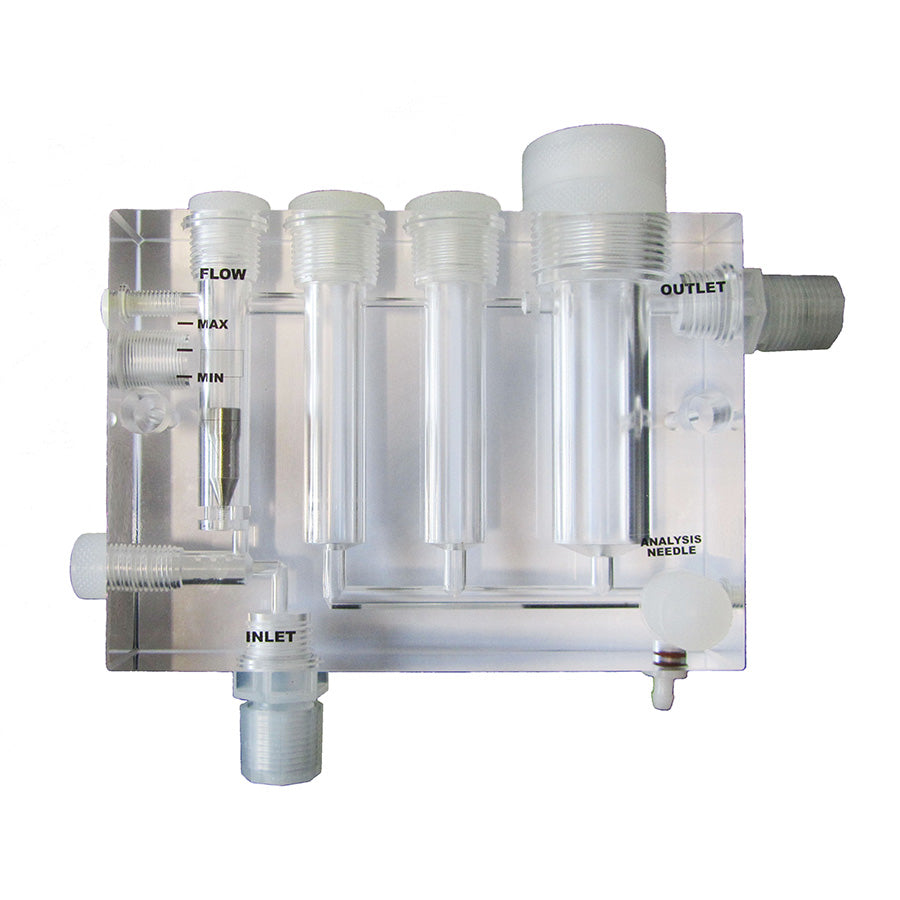

The SD series includes several models of flow-through probe holders with a methacrylate body, with regulation of the inlet water flow and a sampling outlet. Equipped with housings for a Pt100 temperature probe and proximity sensor. Depending on model, these hold one, two, three or four measurement sensors — including STEIEL's CAC amperometric cells. Supplied with a standard installation kit for cold water; a hot water kit (max 70°C) is available on request.

Available models

• SD-P1 – one 12 mm sensor

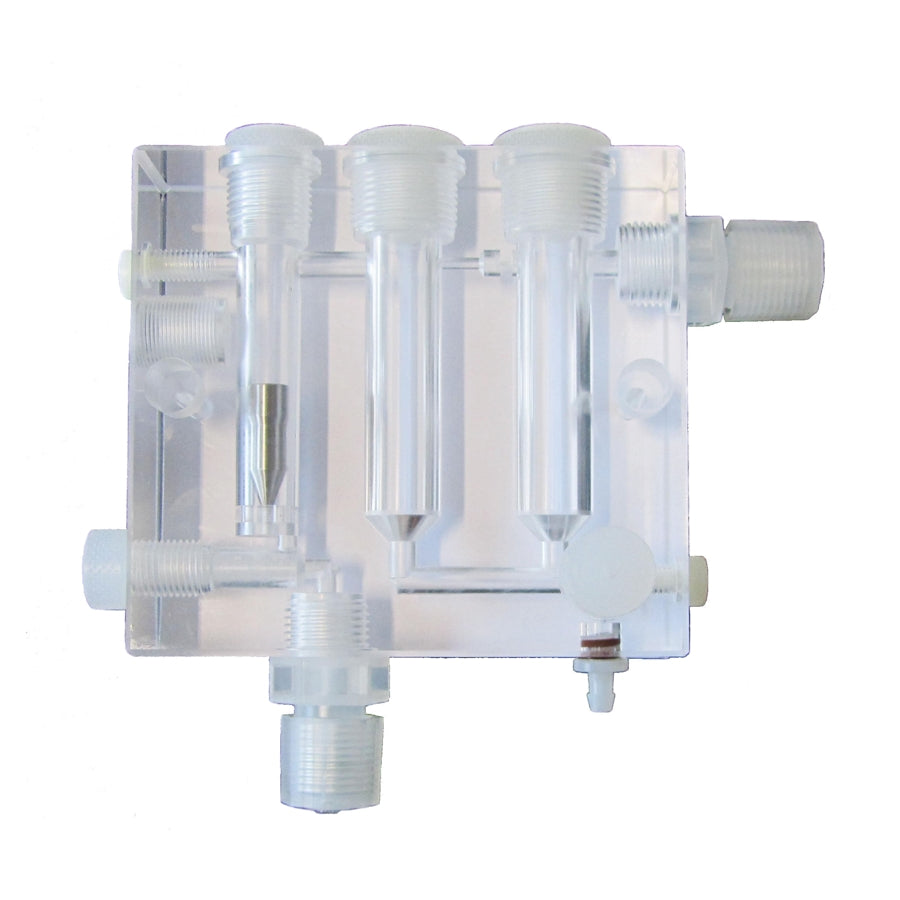

• SD-P2 – two 12 mm sensors

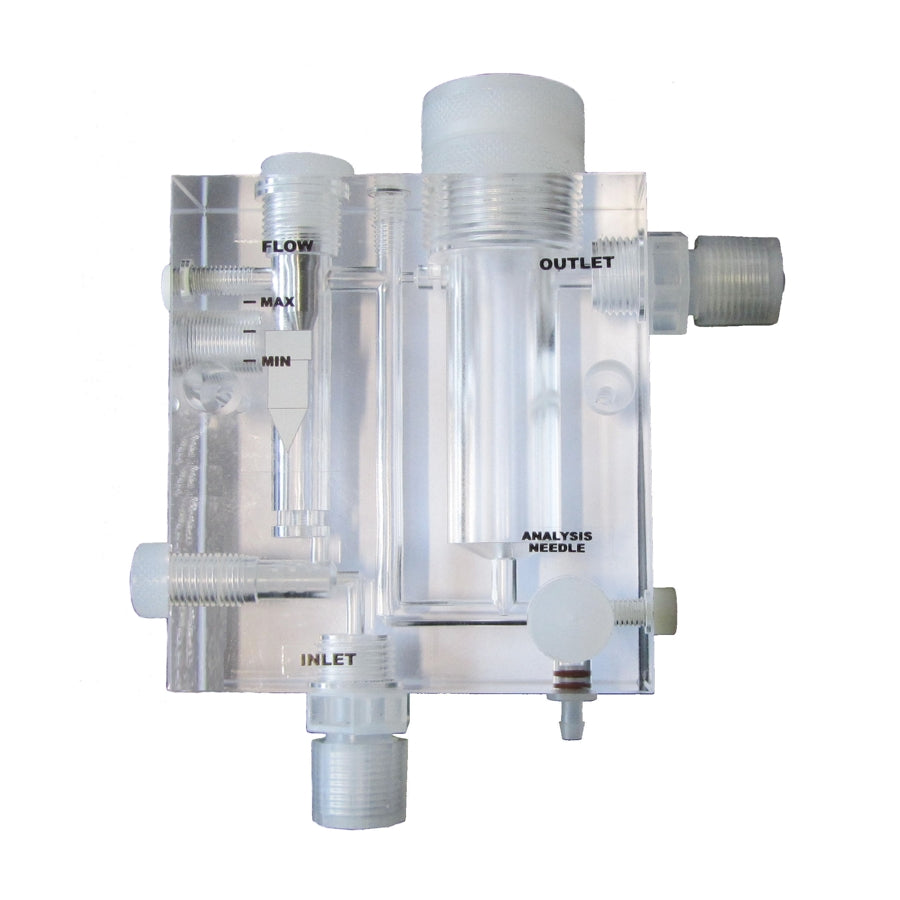

• SD-CAC1 – one CAC cell (max pressure 5 bar, higher than other models in the range)
• SD-CAC2 – one CAC cell plus two 12 mm sensors
• SD-CAC3 – two CAC cells plus two 12 mm sensors
• SDE – two 12 mm sensors; basic version without flow regulation and without housings for temperature probe or proximity sensor

Specifications

• Working temperature: max 45°C with standard (cold water) kit; max 70°C with hot water kit
• Max pressure: 2 bar (5 bar for SD-CAC1 only)
• Water inlet/outlet: connections for 6×8 mm hose
