CLE Series Open Amperometric Cell

Pricing: POA, contact us for a quote.

Configuration confirmed at order: model (CLE11, CLE12 or CLE16, see below) is selected when stock is ordered.

Open amperometric cells provide fast, accurate (non-selective) measurement of disinfectant concentration in water: chlorine, bromine, or chlorine dioxide.

Available models

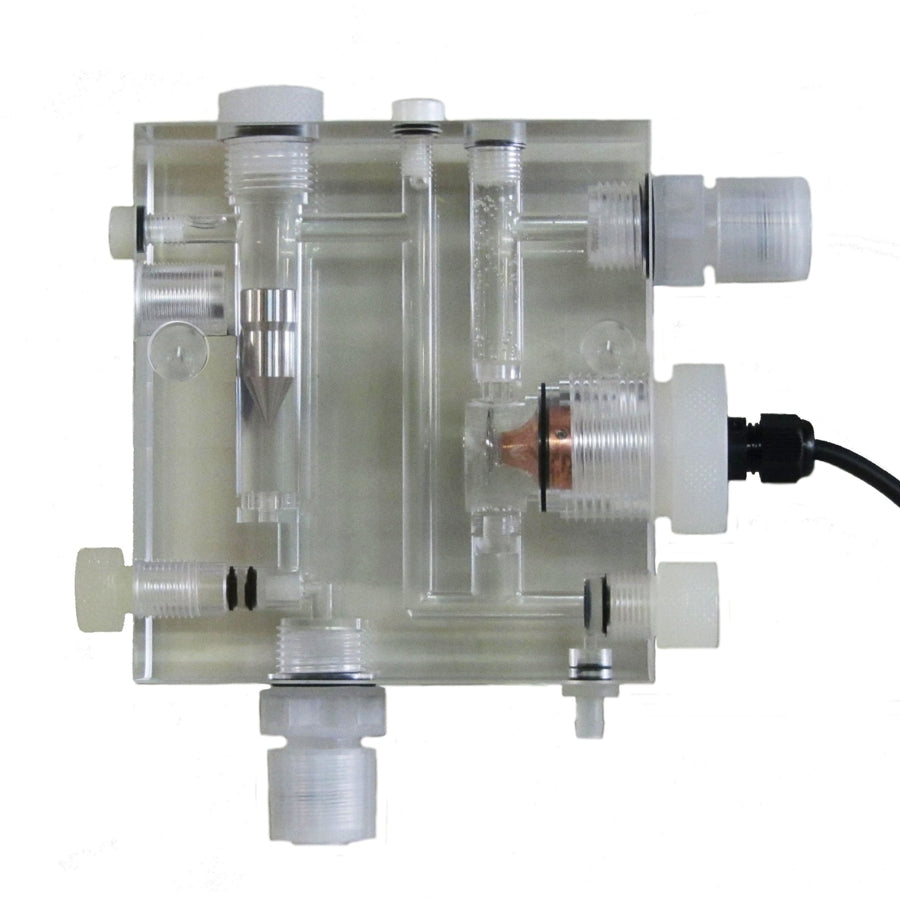

• CLE11 – two-electrode cell (copper/platinum), assembled in a down-flow probe holder with housings for a proximity sensor and temperature probe. Includes an anti-passivation system for the copper electrode and inlet water flow regulation. Wall mounted, supplied with an installation kit (valves, fittings, 5 metres of PE hose).

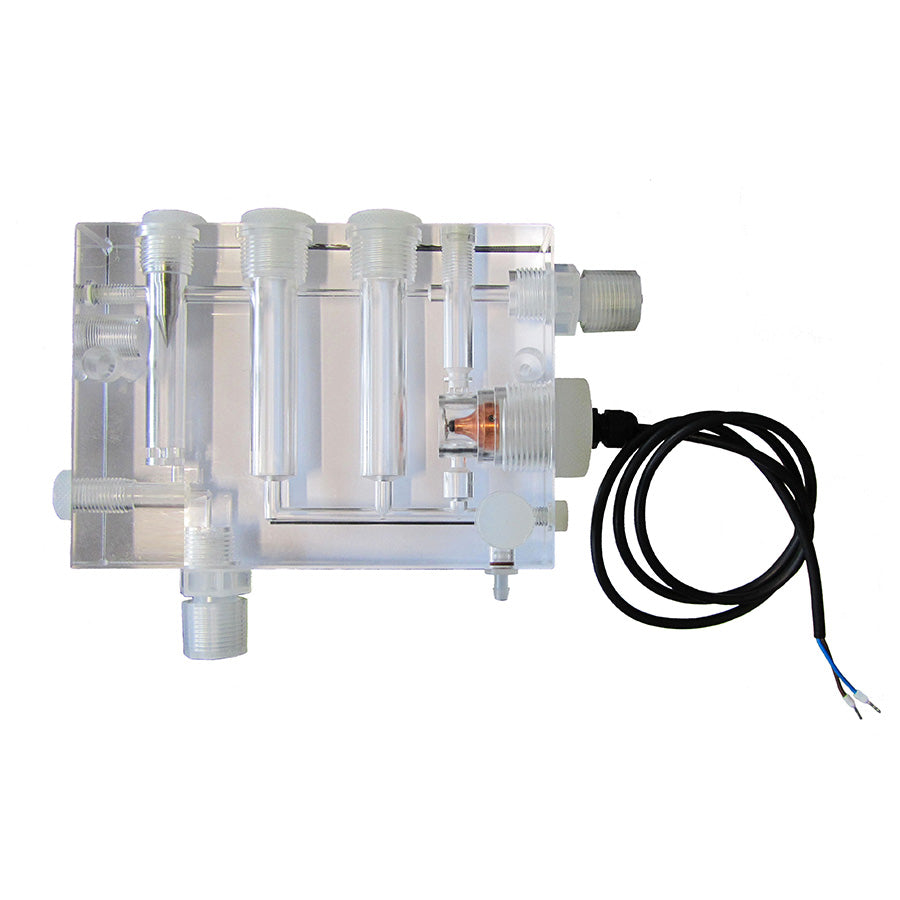

• CLE12 – as CLE11, plus two additional 12 mm sensor housings (e.g. for pH and ORP electrodes), letting the same probe holder carry your disinfectant, pH and ORP sensors together.

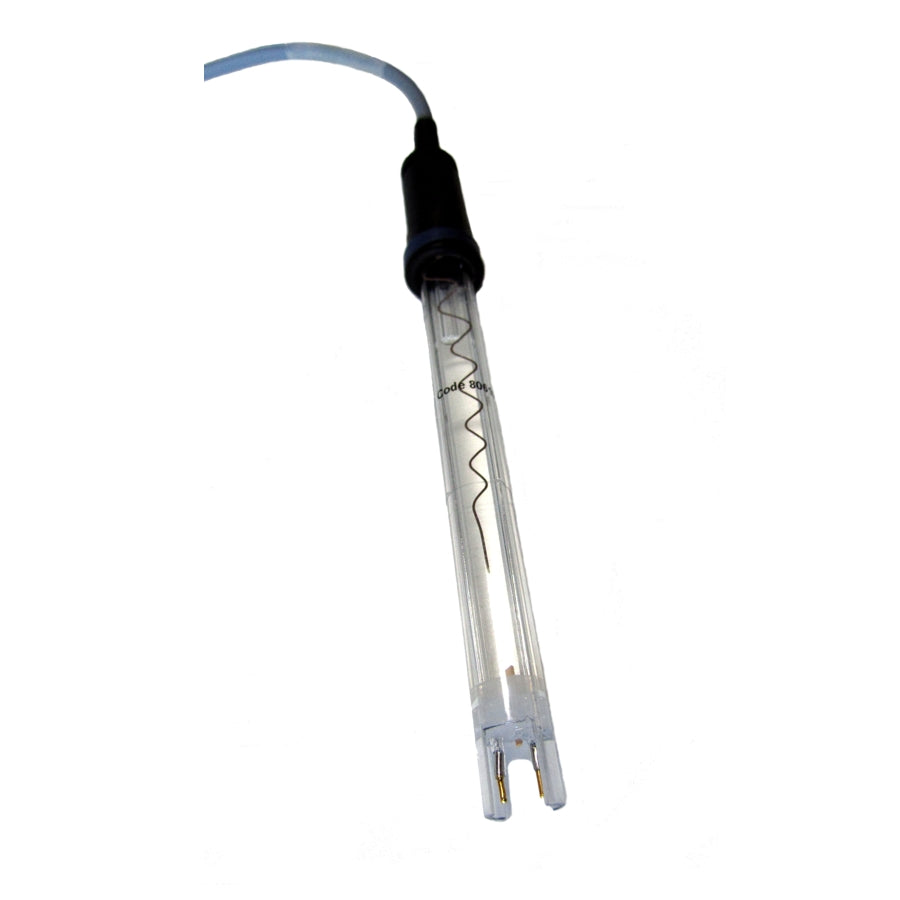

• CLE16 – a three-electrode probe with glass stem and 1 metre cable (M8 connector), suitable for potable water and swimming pools, including in the presence of salt electrolysis. Requires a separate probe holder with proximity sensor and inlet flow regulation (not included) — unlike CLE11/CLE12, which come with their own holder.

Specifications

• Measurement range: 0–2.00 ppm (up to 5 ppm with saturation error)
• CLE11/CLE12 working conditions: recommended flow rate 40–50 L/h; max temperature 40°C; max pressure 3 bar; pH range 6–7.8
• CLE16 working conditions: recommended flow rate 60–80 L/h; max temperature 45°C; max pressure 3 bar; pH range 5–9 (cell working limits), 6–7.8 recommended for chlorine disinfection
